Vilarnaucart · since 1956

Machinery for converting board into packaging and point-of-sale displays

Machinery for sheet-to-sheet lamination, die-cutting, folder-gluing and film lamination, with installation, commissioning and technical service. Before we specify a machine, we find out what you make, how you work and what you need to improve in production.

Discuss your requirements View the processes

Not sure yet which machine you need? Start with what you want to improve

Die-cutting machine installed by Vilarnaucart

Machinery by process

If you already know which process you need to equip.

01
Film lamination
Bonds a film to the printed sheet with heat and pressure, to protect it and give it a gloss or matt finish.
The choice depends on The substrate, the level of automation, the format and the output.
02
Sheet-to-sheet lamination
Bonds two materials sheet to sheet, for example a printed sheet onto corrugated board, to form the board that is then die-cut.
The choice depends on The materials to be joined, the sheet format and the production volume.
03
Die-cutting
Cuts and creases the sheet to obtain the flat shape of the pack, box or display.
The choice depends on The material (folding carton or corrugated), the sheet format, the run length and the finishes.
04
Folding and gluing
Folds and glues the die-cut blank to deliver a carton or box ready to be assembled.
The choice depends on The box constructions, the materials and how often you change job.

Real installations

Production problems solved in real plants.

Three installations, one for each process, with the situation, the decision and the result.

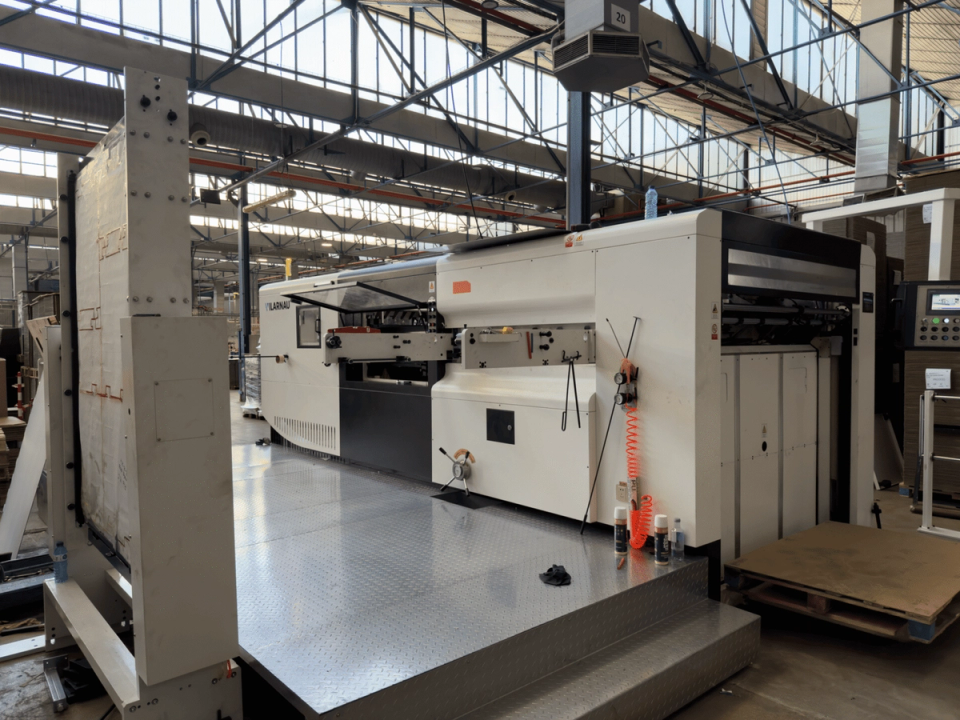

BMB ECO E at the customer's plant · Vallès, Catalonia, Spain
Case study · Die-cutting
Not every job needs to go through an automatic line
A POS display company needed to handle short runs and support jobs without tying up its automatic die-cutting lines.
Vallès, Catalonia, Spain
Read the full case

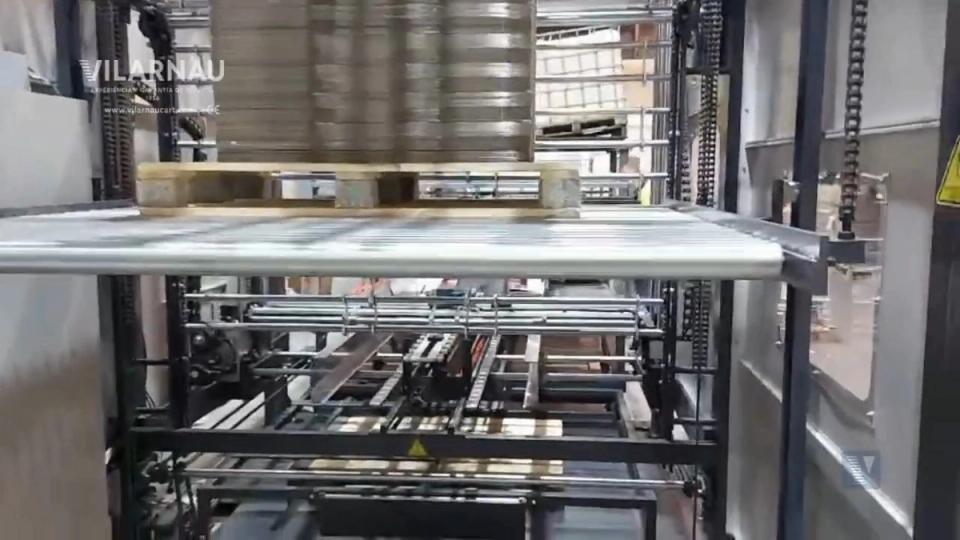

Still from the installation video · Madrid, Spain
Case study · Sheet-to-sheet lamination
The bottleneck was the turning, not the laminating machine
Sheets were turned by hand at the exit of a laminating machine, and that manual operation had become the bottleneck.
Madrid, Spain
Read the full case

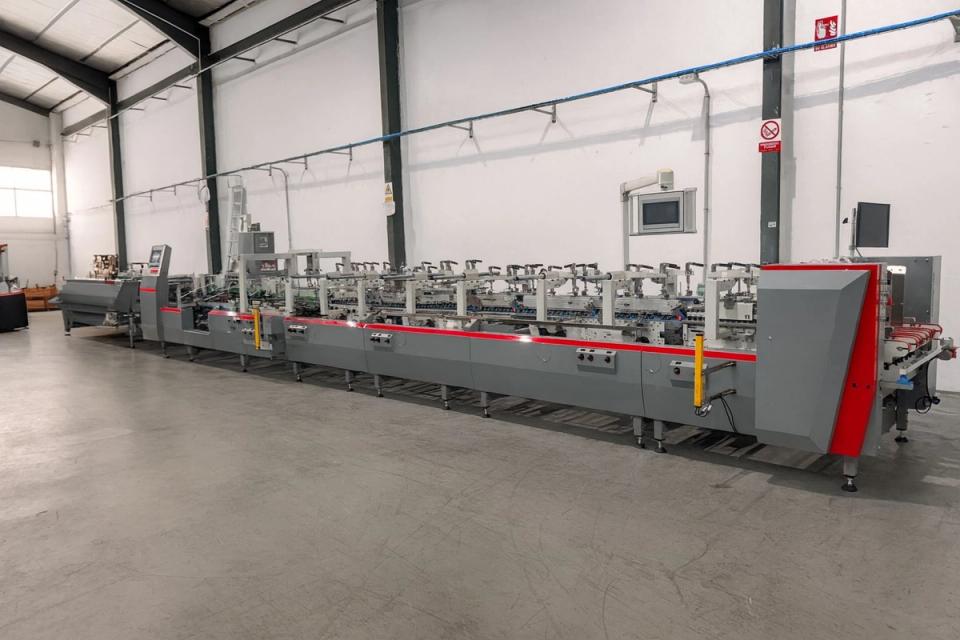

Vicfold Pro at the customer's plant · Valencia, Spain
Case study · Folding and gluing
Ending the dependence on third parties for folding and gluing
A packaging company depended on third parties or manual processes to fold and glue its cartons.
Valencia, Spain
Read the full case
